Description

SPECIFICATIONS

Brand Name: NONE

Certification: CE,FCC,RoHS,UL

Choice: yes

Controller Current: 100A

Controller Voltage: 12V/24V Detection

High-concerned chemical: None

Inverter Input: DC 12V

Inverter Output: AC110V/220V

Model Number: SEP-18K-XB6000

Origin: Mainland China

Output Voltage (V): 110V/220V

Solar Panel Output 1: DC 18V

Solar Panel Output 2: USB 5V

Solar Panel Size: 480mm*280mm

Solar Power (W): 25W-500W

Transitioning to a solar-powered home offers significant environmental and financial benefits:
🚀 Reduce Carbon Footprint: By harnessing the sun’s energy, you cut reliance on fossil fuels, lowering your carbon footprint and fighting climate change.
🚀 Energy Cost Savings: Solar power reduces long-term electricity expenses, especially in remote or off-grid areas with high utility costs.
🚀 Power Independence: During grid outages, solar systems keep your home powered—ideal for emergencies or extreme weather.
🚀 Longevity & Reliability: Solar systems require minimal maintenance and can last decades, providing steady energy for years.
🚀 Boost Home Resale Value: Solar installations increase a property’s marketability and potential resale value.

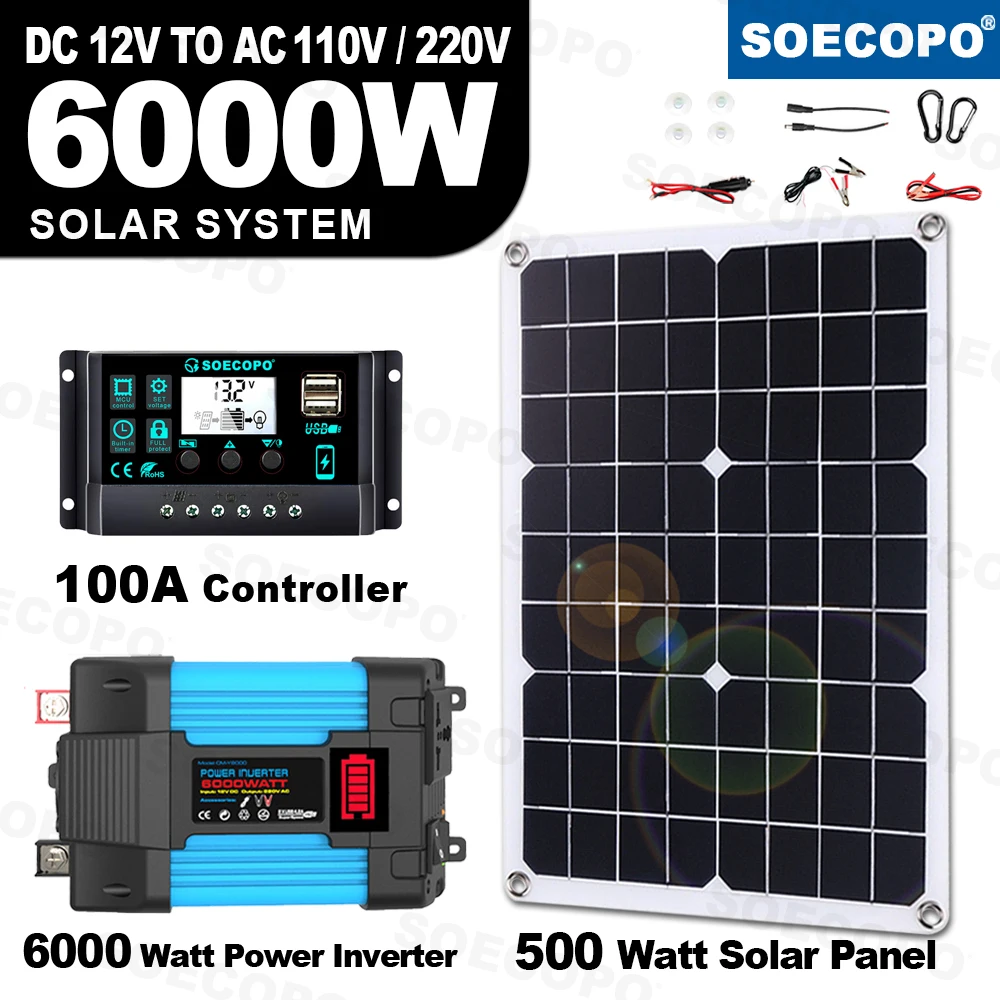

📊Product Parameters

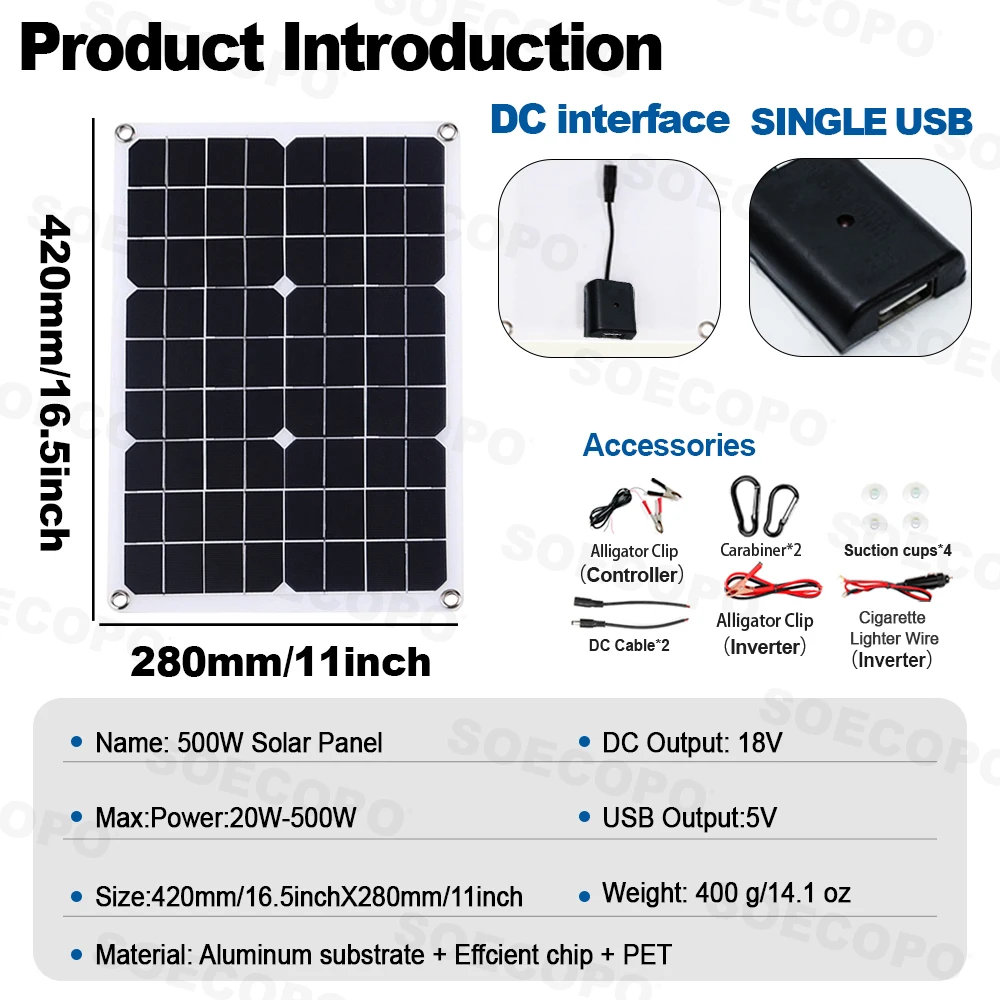

🔹500W Solar Panel
Power Range: 25W – 500W
Output: DC 18V + USB 5V
Dimensions: 480*280mm
Weight: 250g

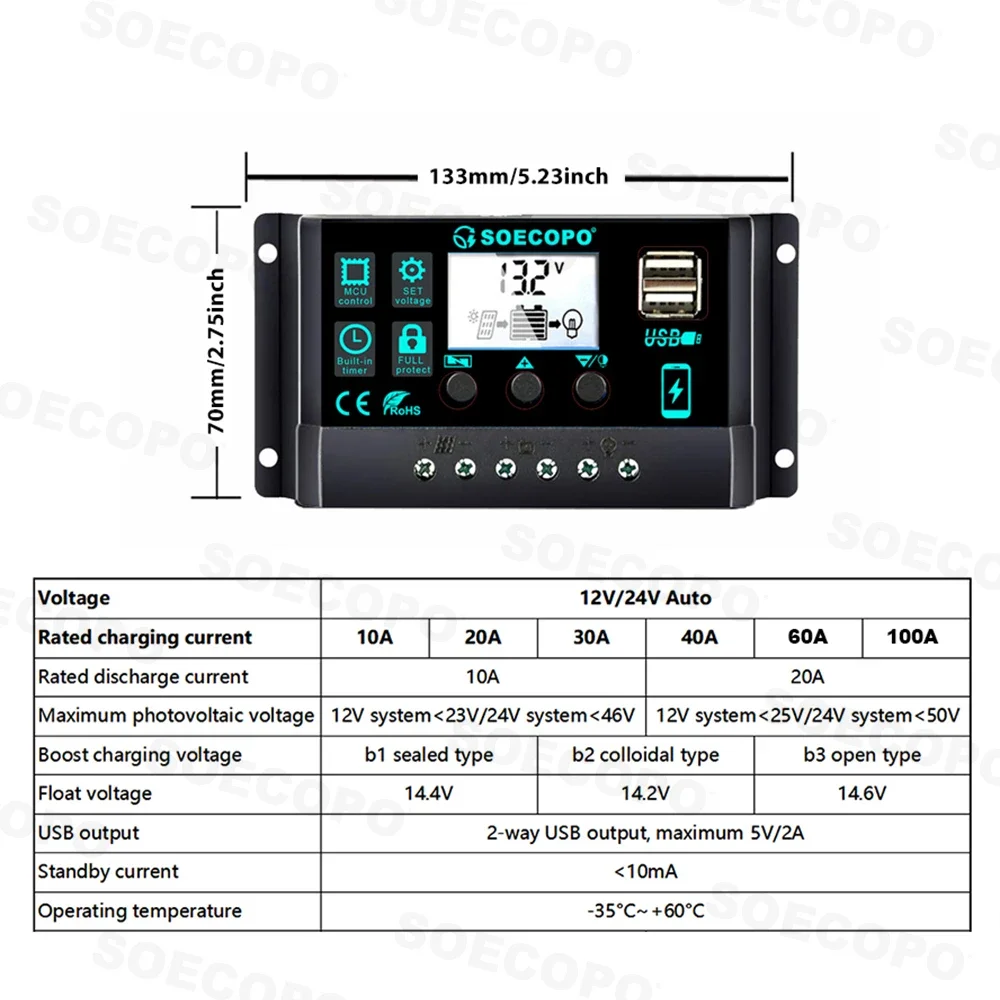

🔹SOECOPO Charge Controller
Voltage: Auto 12V/24V Detection
Charging Current: 30A-100A
Display: Real-time Voltage/Current Monitoring
Operating Temp: -35°C to +60°C

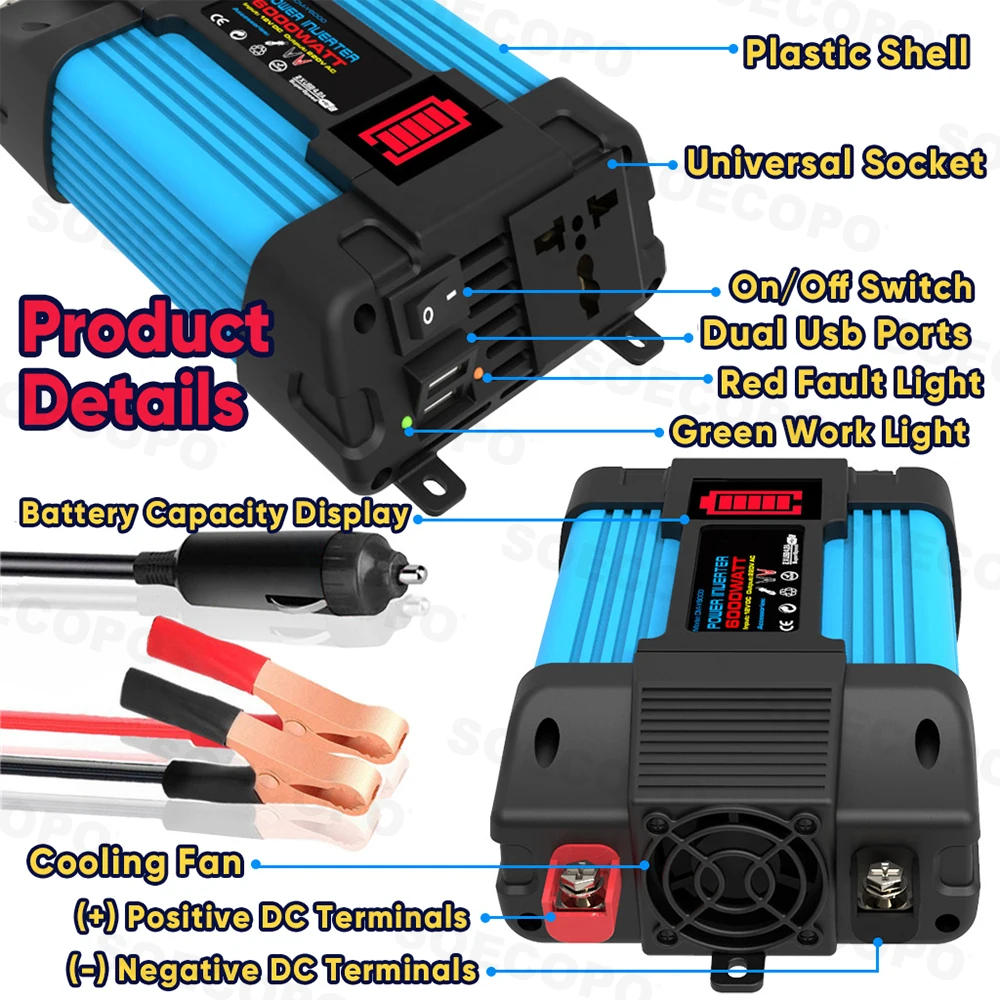

🔹6000W Inverter
Continuous Power: 500W
Peak Power: 6000W
Input: DC 12V
Output: AC 220V/110V
Efficiency: >90%

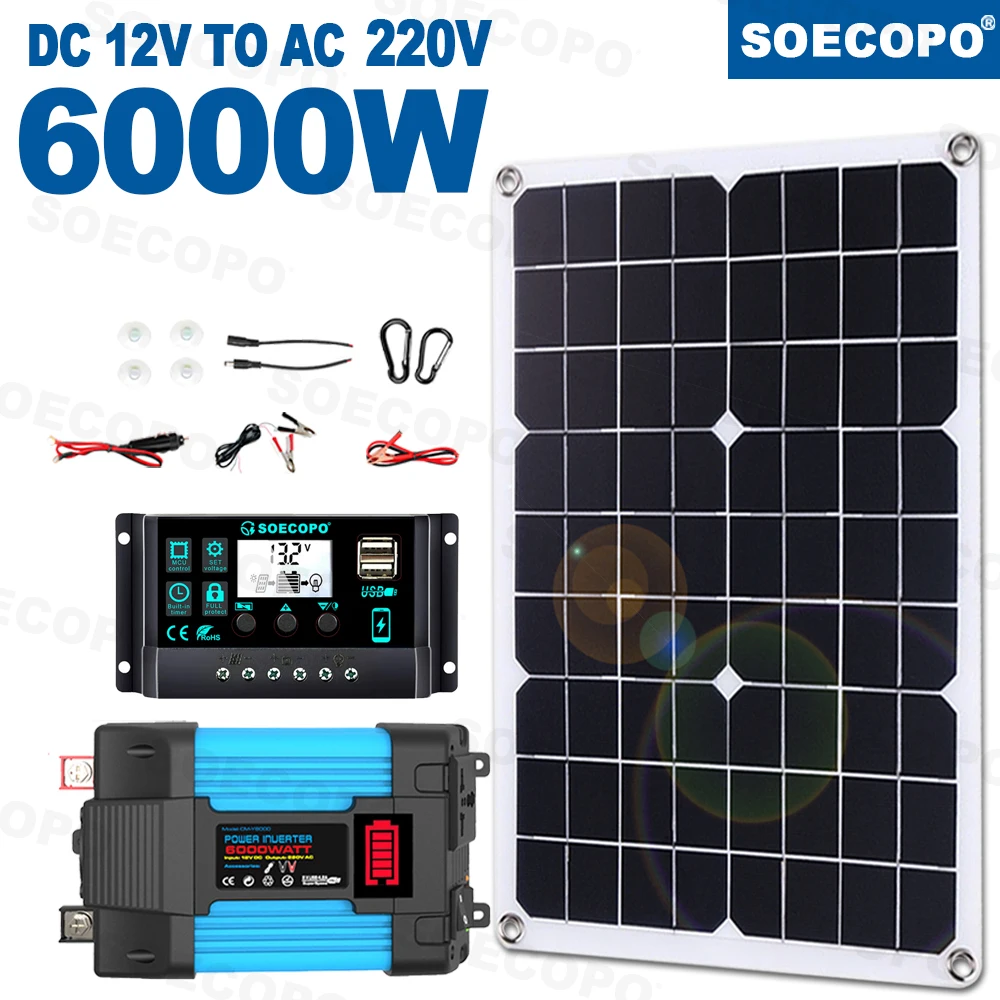

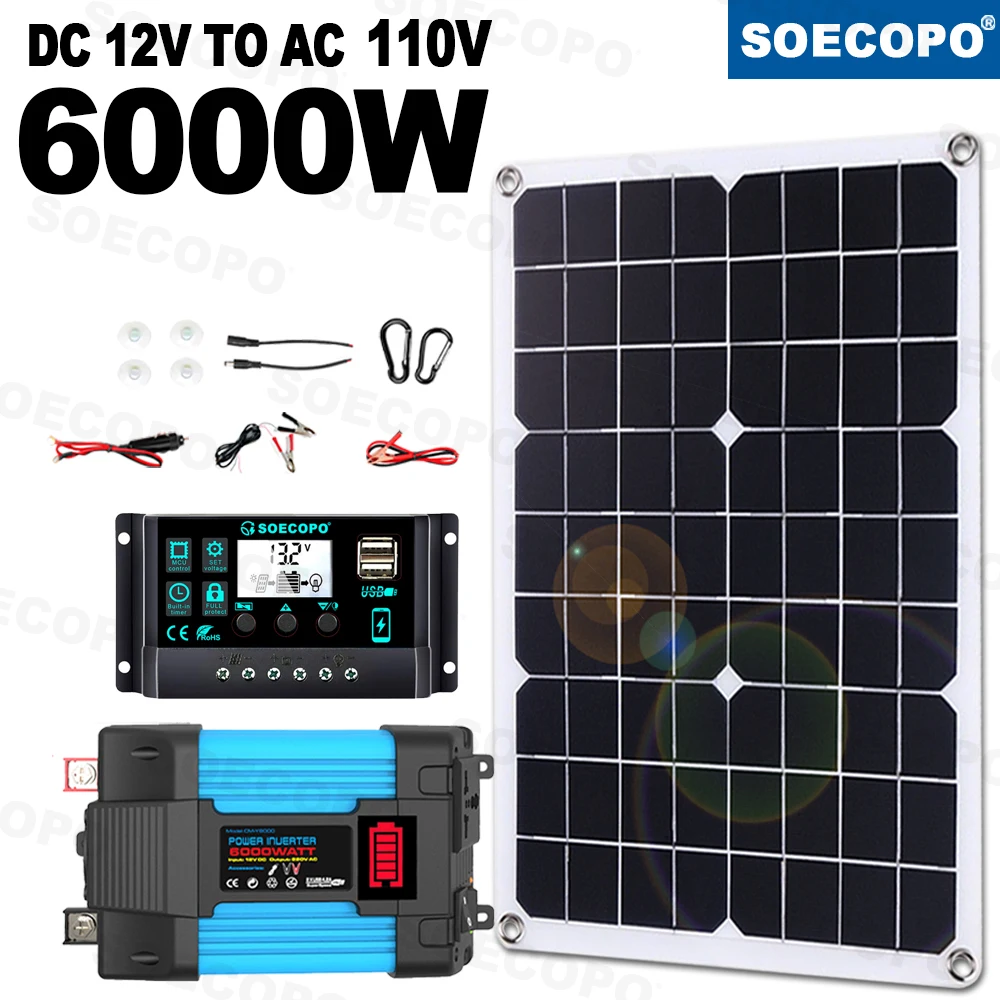

📦Package list

✅500W Solar Panel ×1
✅SOECOPO Charge Controller ×1
✅6000W Inverter ×1
✅Accessories:
（1）Controller Alligator Clips ×1
（2）Inverter Alligator Clips ×1
（3）DC Cables (Red/Black) ×2
（4）Carabiners ×2
（5）Suction Cups ×4
（6）Car Inverter Cable ×1
（7）User Manual ×1
⚠️ Batteries not included (user-provided).

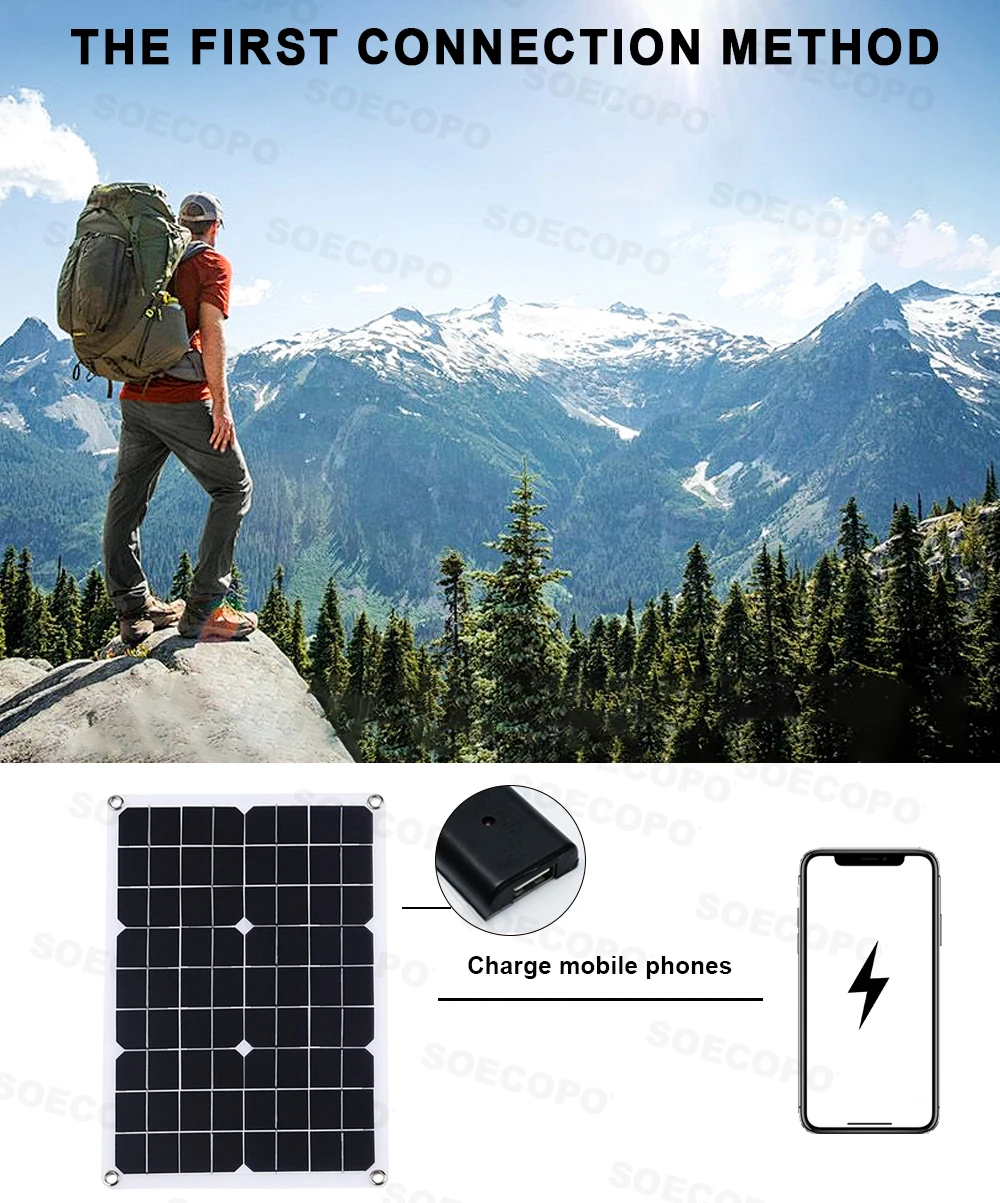

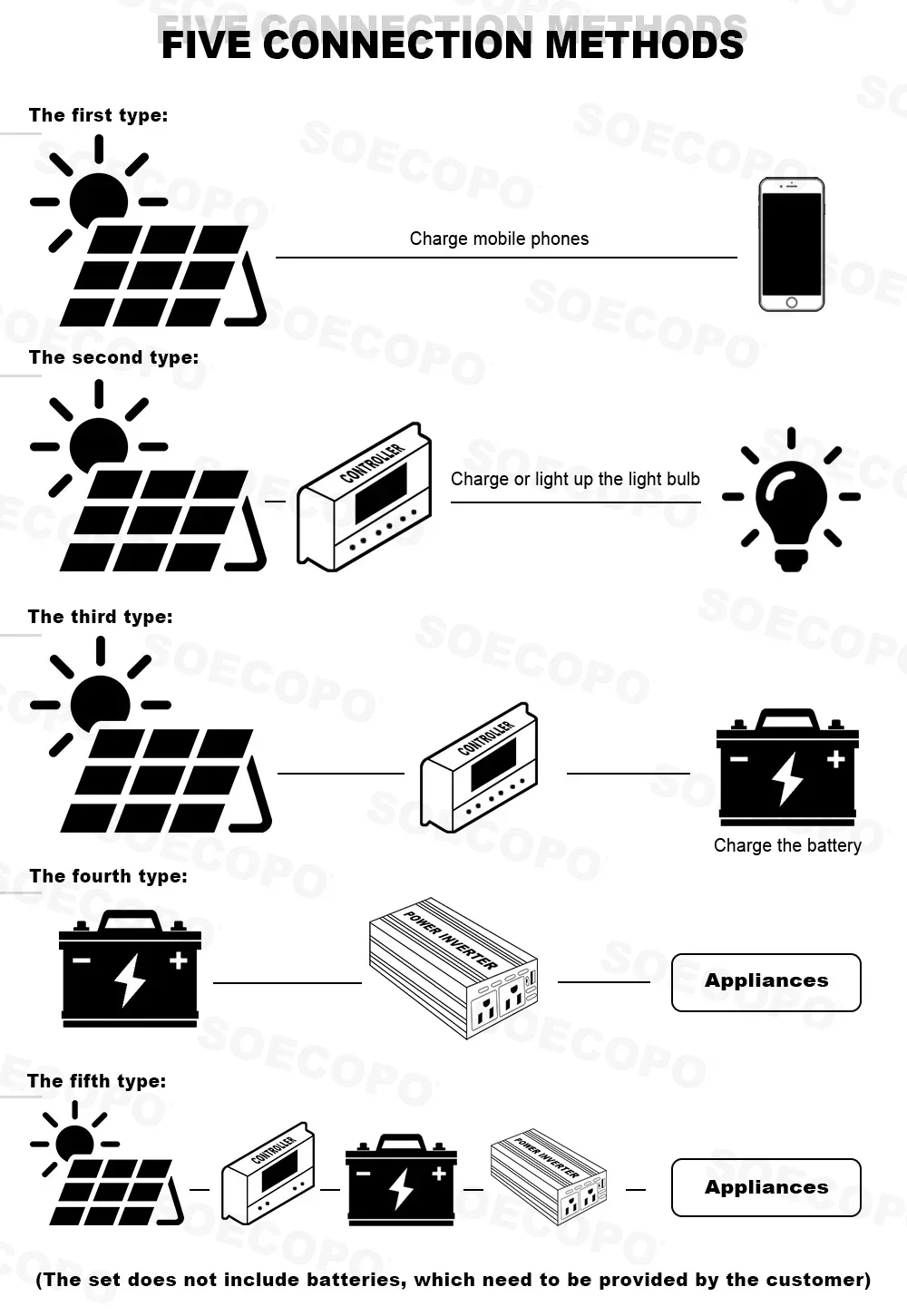

Mode 1: Solar Panel → Mobile Device

✅Features
▸Direct charging via USB (5V output), no controller/battery required.
▸Plug-and-play for emergency use.
✅Precautions
▸Use the built-in USB port on the solar panel.
▸Avoid overcharging under strong sunlight (recommend a phone charge protector).
✅Scenarios
▸ Outdoor emergency charging (camping/hiking)
▸ Phone/tablet power supply in off-grid areas

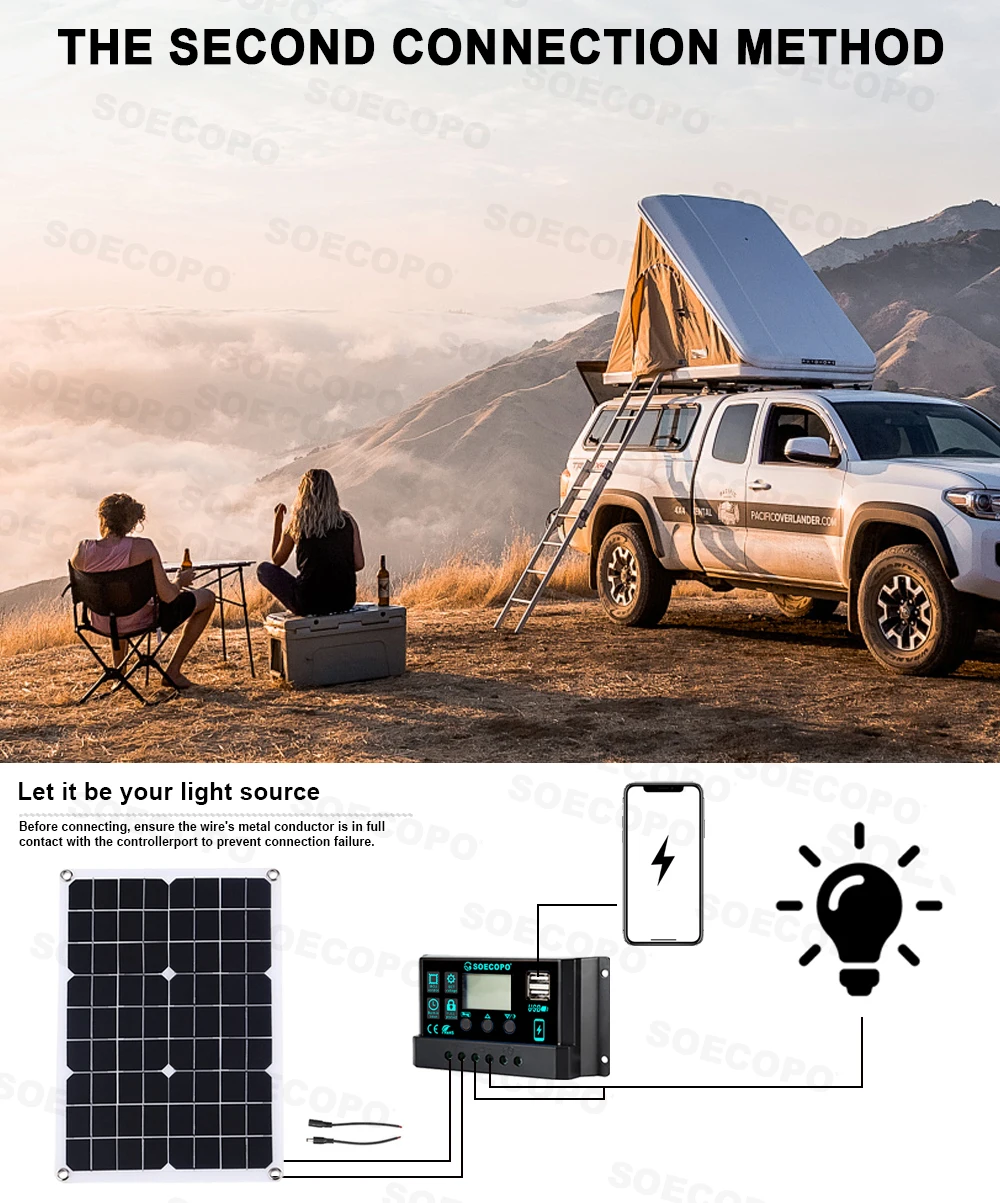

Mode 2: Solar Panel → Controller → Light Bulb

✅Features
▸Controller stabilizes voltage for bulb protection.
▸Supports low-wattage LED bulbs (≤15W).
✅Precautions
▸Connect controller to a Solar Panel first (even for temporary lighting).
▸Match bulb power to controller’s discharge current (≤10A).
✅Scenarios
▸ Nighttime outdoor lighting (tents/backyards)
▸ Emergency lighting during power outages

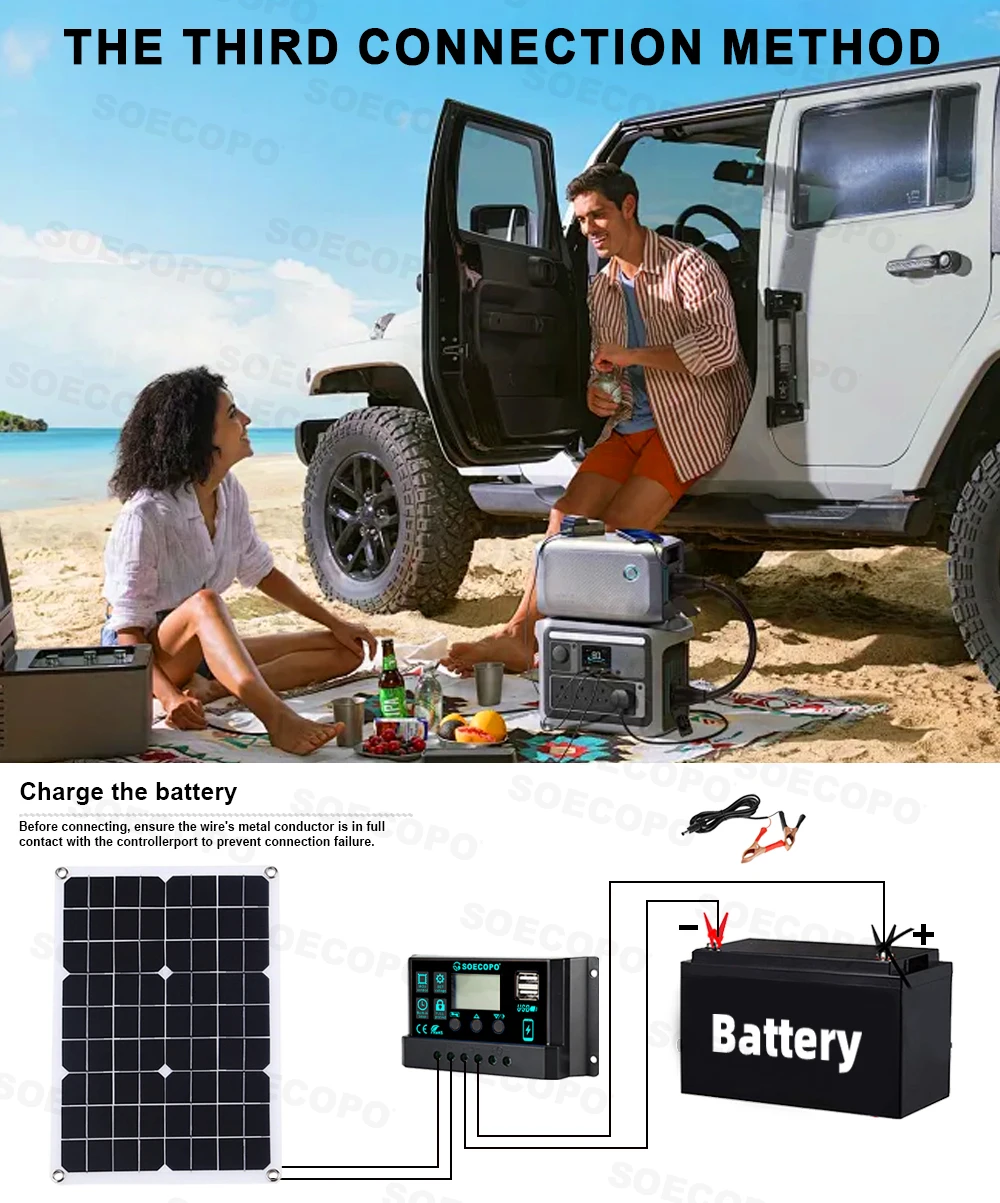

Mode 3: Solar Panel → Controller → Battery

✅Features
▸Efficient energy storage with overcharge/discharge protection.
▸Compatible with lead-acid, lithium, and gel batteries.
✅Precautions
▸Connect battery poles correctly to controller terminals (+/-).
▸Set battery type on controller after initial connection (e.g., b1/b2/b3 modes).
✅Scenarios
▸ Daytime solar storage for nighttime use
▸ Off-grid battery bank setup

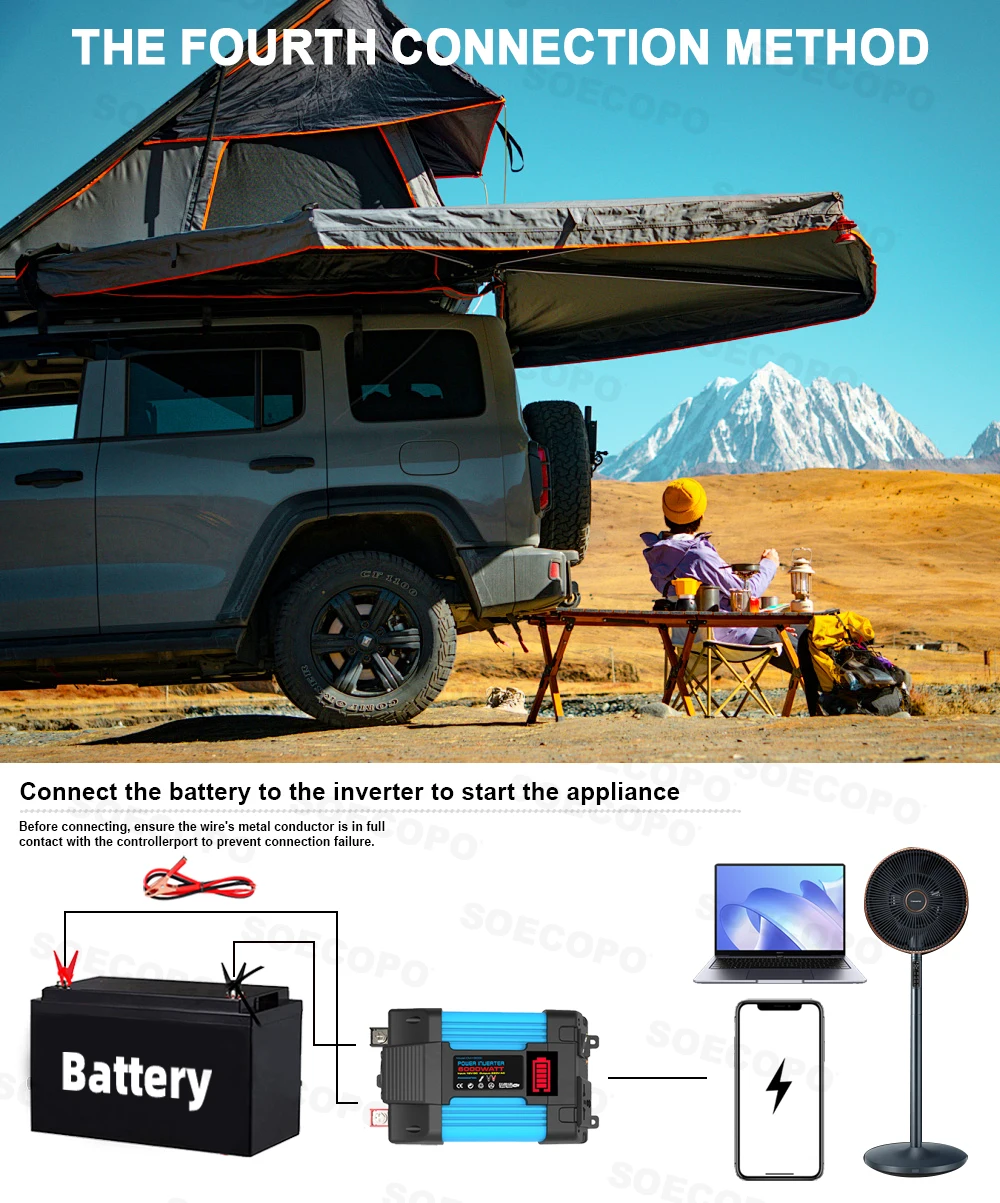

Mode 4: Battery → Inverter → Appliances

✅Features
▸Inverts 12V DC to 110V/220V AC for high-power devices.
▸6000W peak power supports motor-driven tools (e.g., drills, refrigerators).
✅Precautions
▸Inverter input voltage must match battery (12V).
▸Keep continuous load ≤500W; peak load ≤30 seconds per use.
✅Scenarios
▸ Car appliances (fridges/laptops)
▸ Emergency home devices (fans/medical equipment)

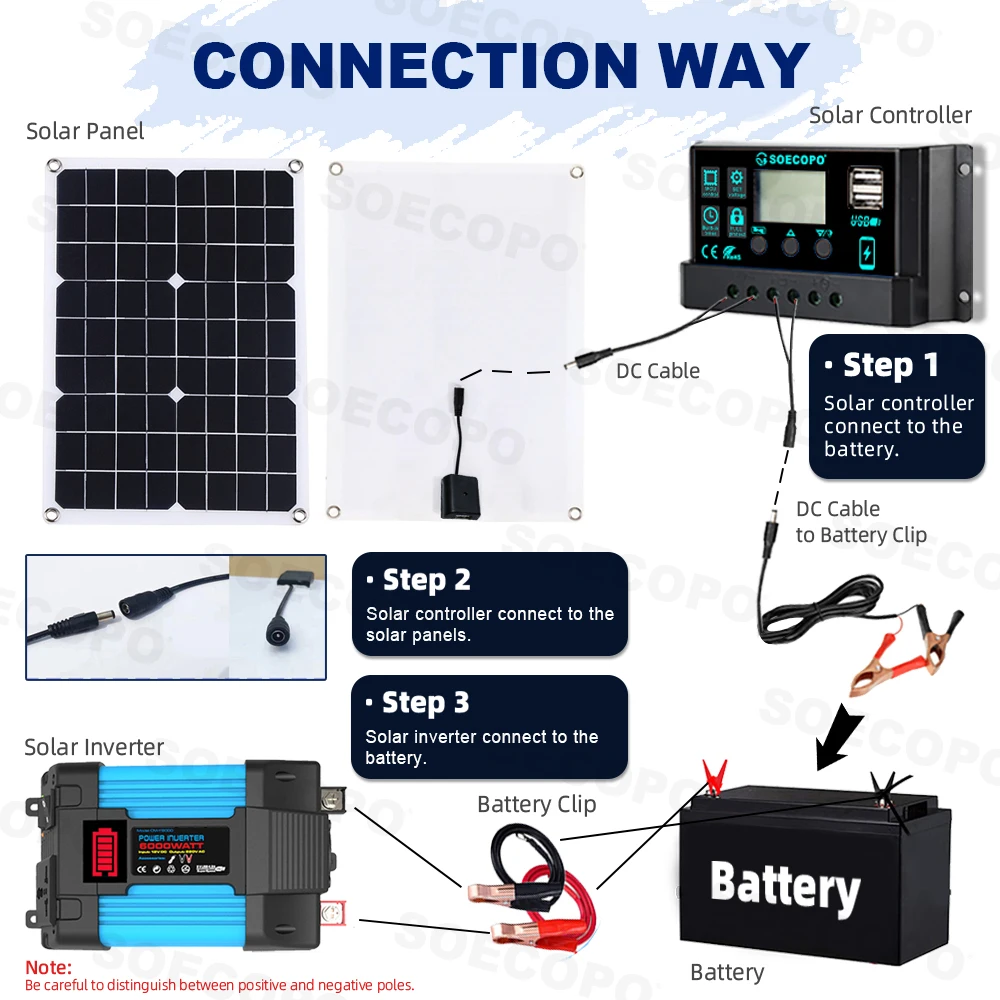

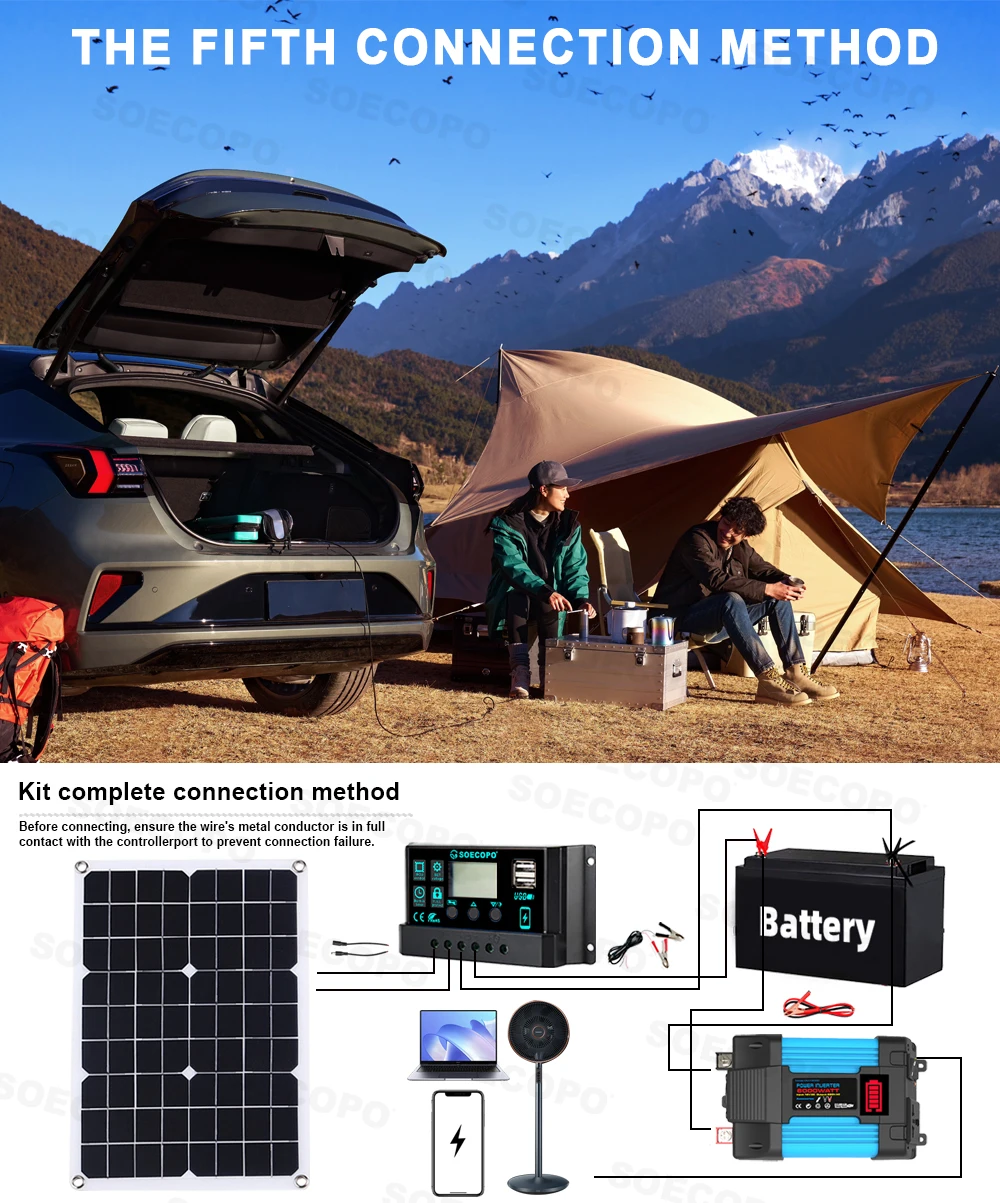

Mode 5: Solar Panel → Controller → Battery → Inverter → Appliances

✅Features
▸Full off-grid power chain: Solar → Battery → Household devices.
▸Dual protection (controller + inverter) with real-time monitoring.
✅Precautions
▸Connection sequence: Solar → Controller → Battery → Inverter.
▸Match total power: Solar peak 500W + Inverter continuous 500W.
✅Scenarios
▸ Home off-grid systems (lights/TV/small appliances)
▸ RV/boat all-day power solutions
