🔥Benefits of Using a SOECOPO® Solar Power Kit for Home

Transitioning to a solar-powered home offers significant environmental and financial benefits:
🚀 Reduce Carbon Footprint: By harnessing the sun’s energy, you cut reliance on fossil fuels, lowering your carbon footprint and fighting climate change.
🚀 Energy Cost Savings: Solar power reduces long-term electricity expenses, especially in remote or off-grid areas with high utility costs.
🚀 Power Independence: During grid outages, solar systems keep your home powered—ideal for emergencies or extreme weather.
🚀 Longevity & Reliability: Solar systems require minimal maintenance and can last decades, providing steady energy for years.
🚀 Boost Home Resale Value: Solar installations increase a property’s marketability and potential resale value.

📊Product Parameters

🔹500W Solar Panel
Power Range: 25W – 500W
Output: DC 18V + USB 5V
Dimensions: 480*280mm
Weight: 250g

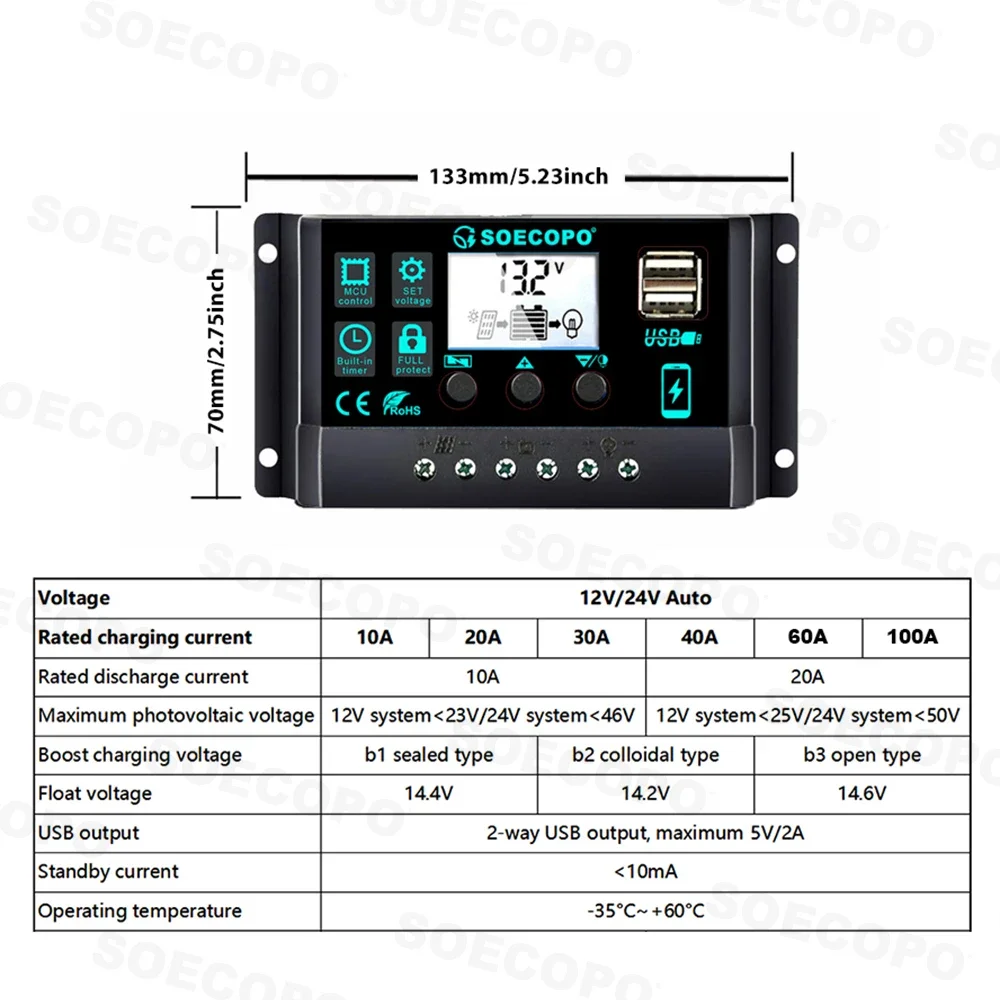

🔹SOECOPO Charge Controller
Voltage: Auto 12V/24V Detection
Charging Current: 30A-100A
Display: Real-time Voltage/Current Monitoring
Operating Temp: -35°C to +60°C

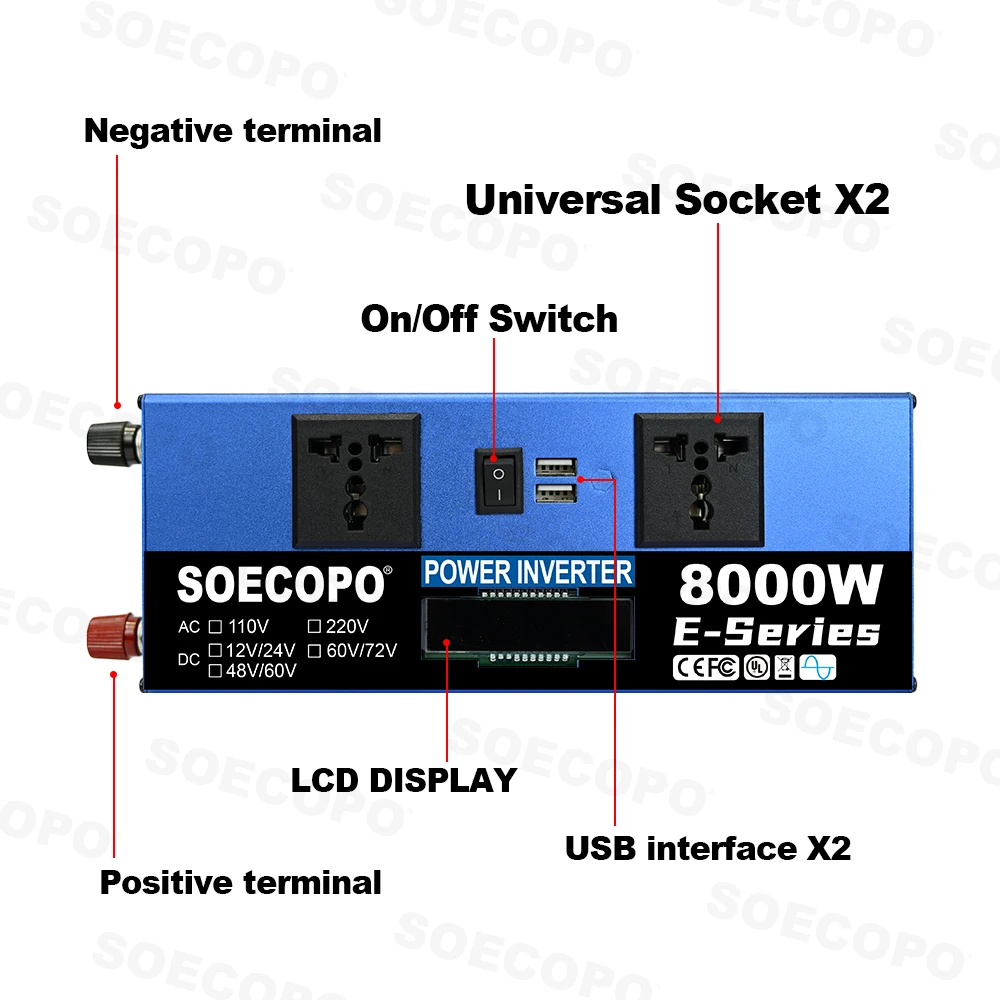

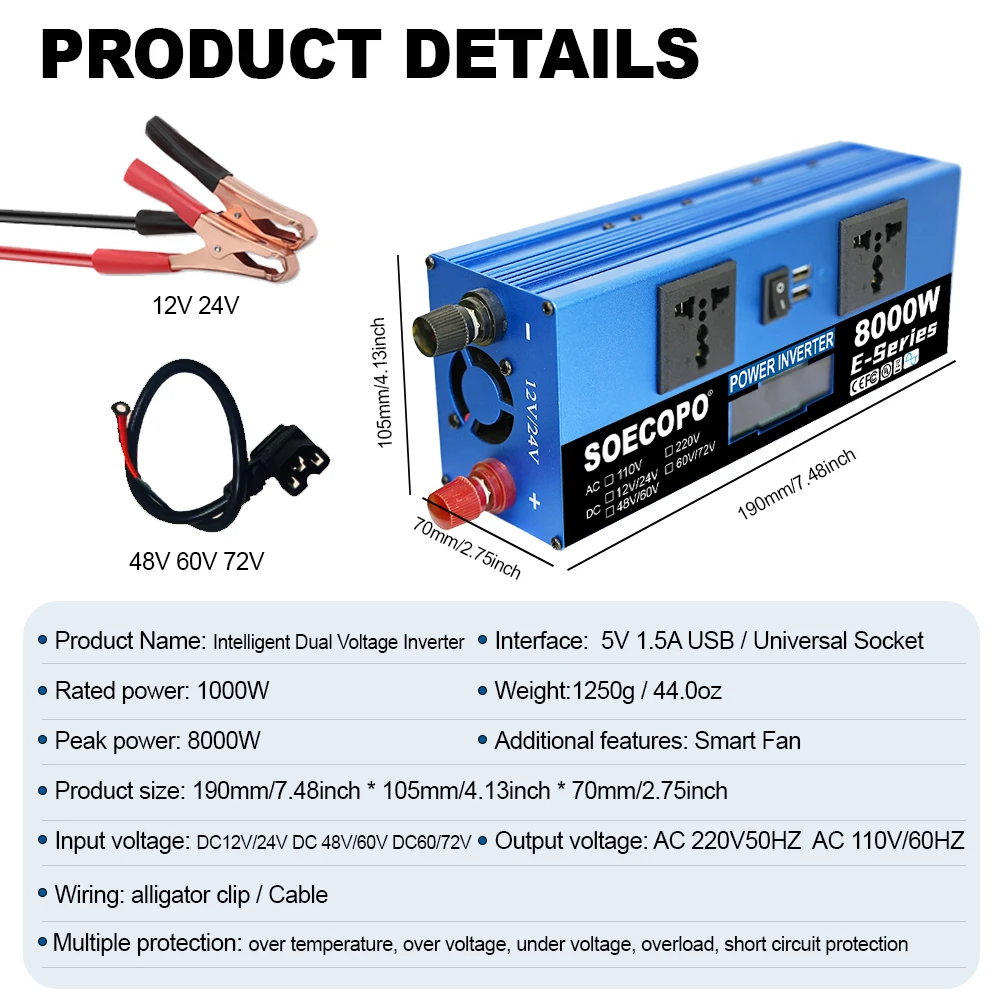

🔹8000W Inverter
Continuous Power: 1000W
Peak Power: 8000W
Input: DC 12V/24V
Output: AC 220V/110V
Efficiency: >90%

📦Package list

✅500W Solar Panel ×1
✅SOECOPO Charge Controller ×1
✅8000W Inverter ×1
✅Accessories:
（1）Controller Alligator Clips ×1
（2）Inverter Alligator Clips ×1
（3）DC Cables (Red/Black) ×2
（4）Carabiners ×2
（5）Suction Cups ×4
（6）Car Inverter Cable ×1
（7）User Manual ×1
⚠️ Batteries not included (user-provided).

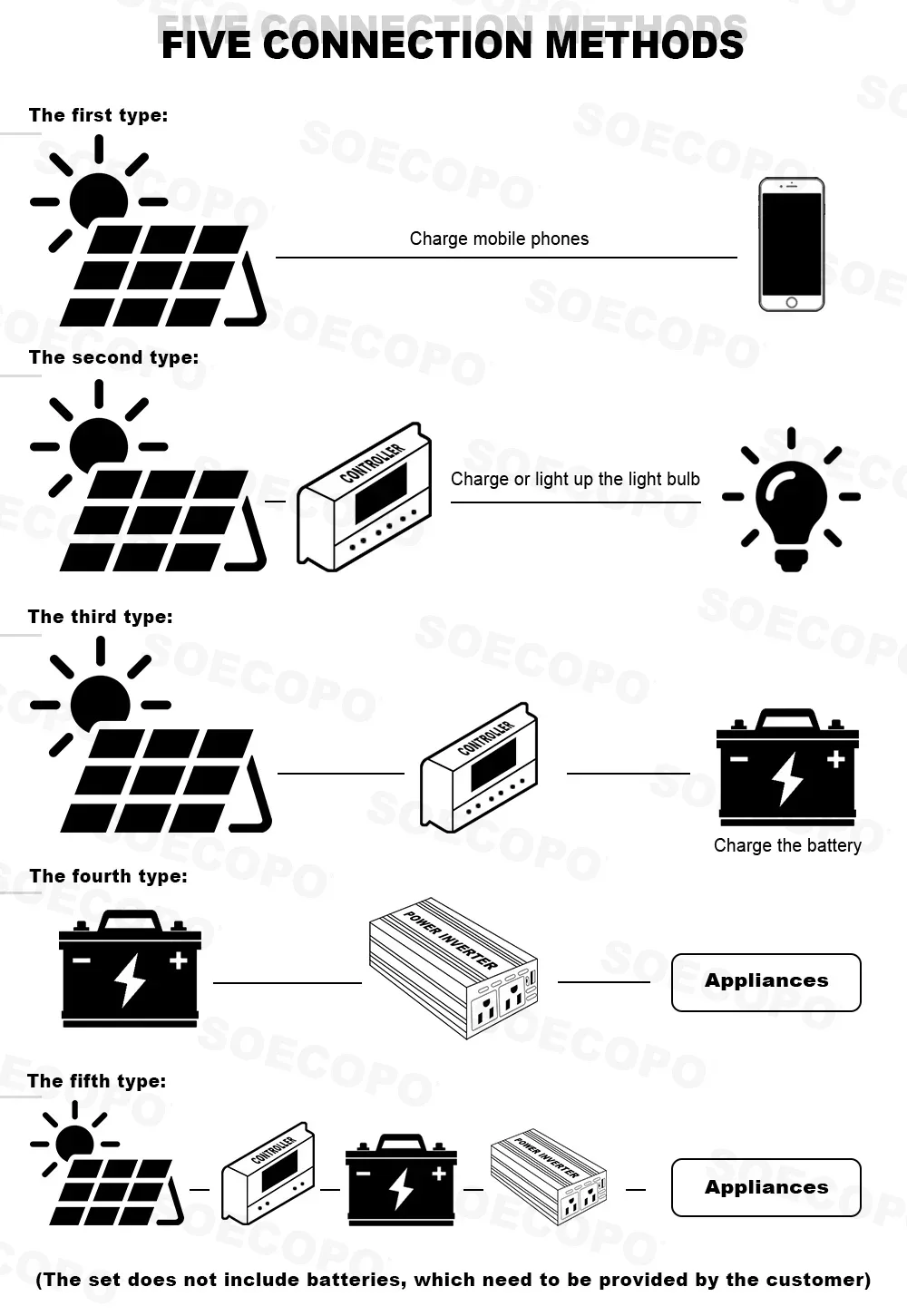

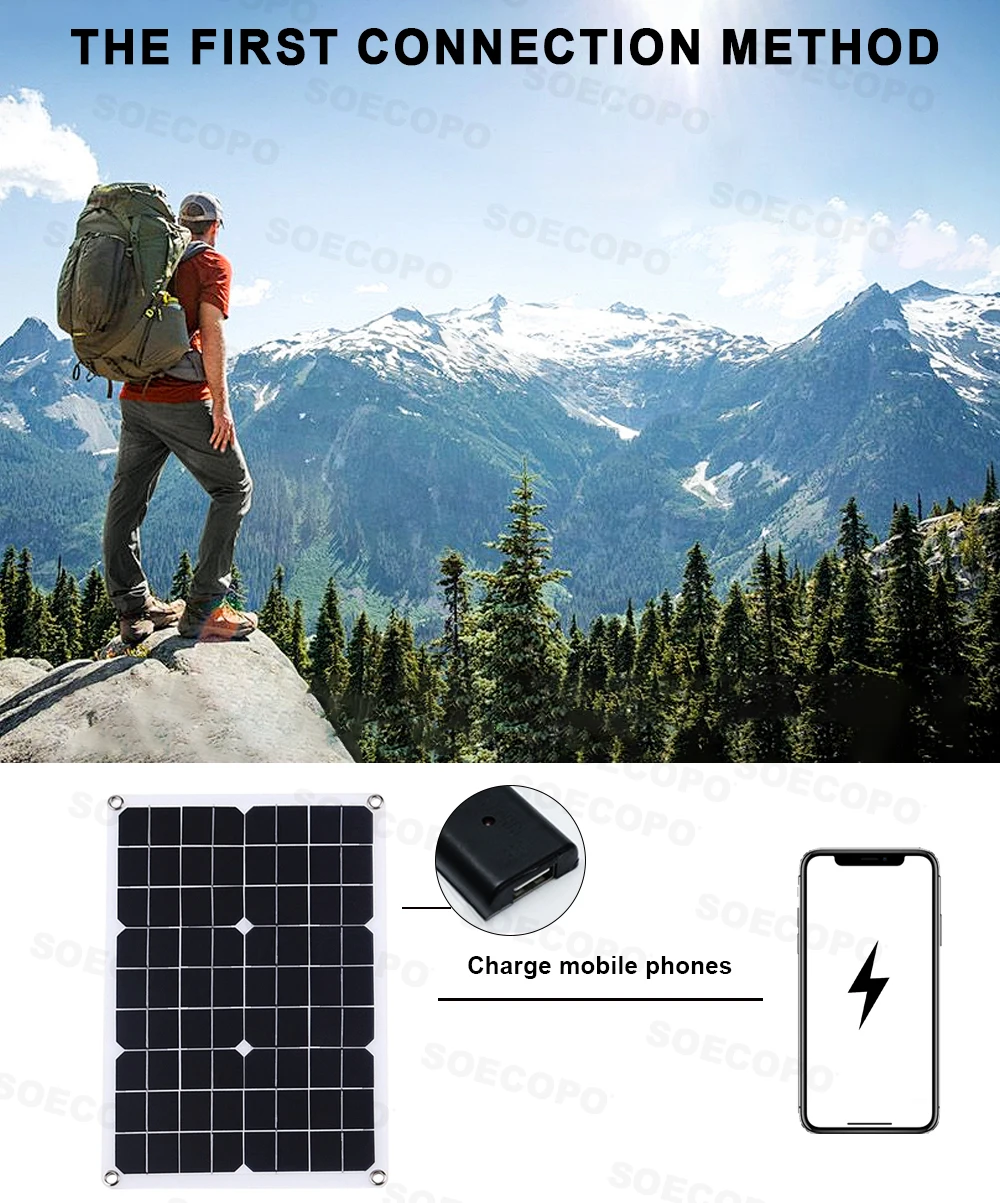

Mode 1: Solar Panel → Mobile Device

✅Features
▸Direct charging via USB (5V output), no controller/battery required.
▸Plug-and-play for emergency use.
✅Precautions
▸Use the built-in USB port on the solar panel.
▸Avoid overcharging under strong sunlight (recommend a phone charge protector).
✅Scenarios
▸ Outdoor emergency charging (camping/hiking)
▸ Phone/tablet power supply in off-grid areas

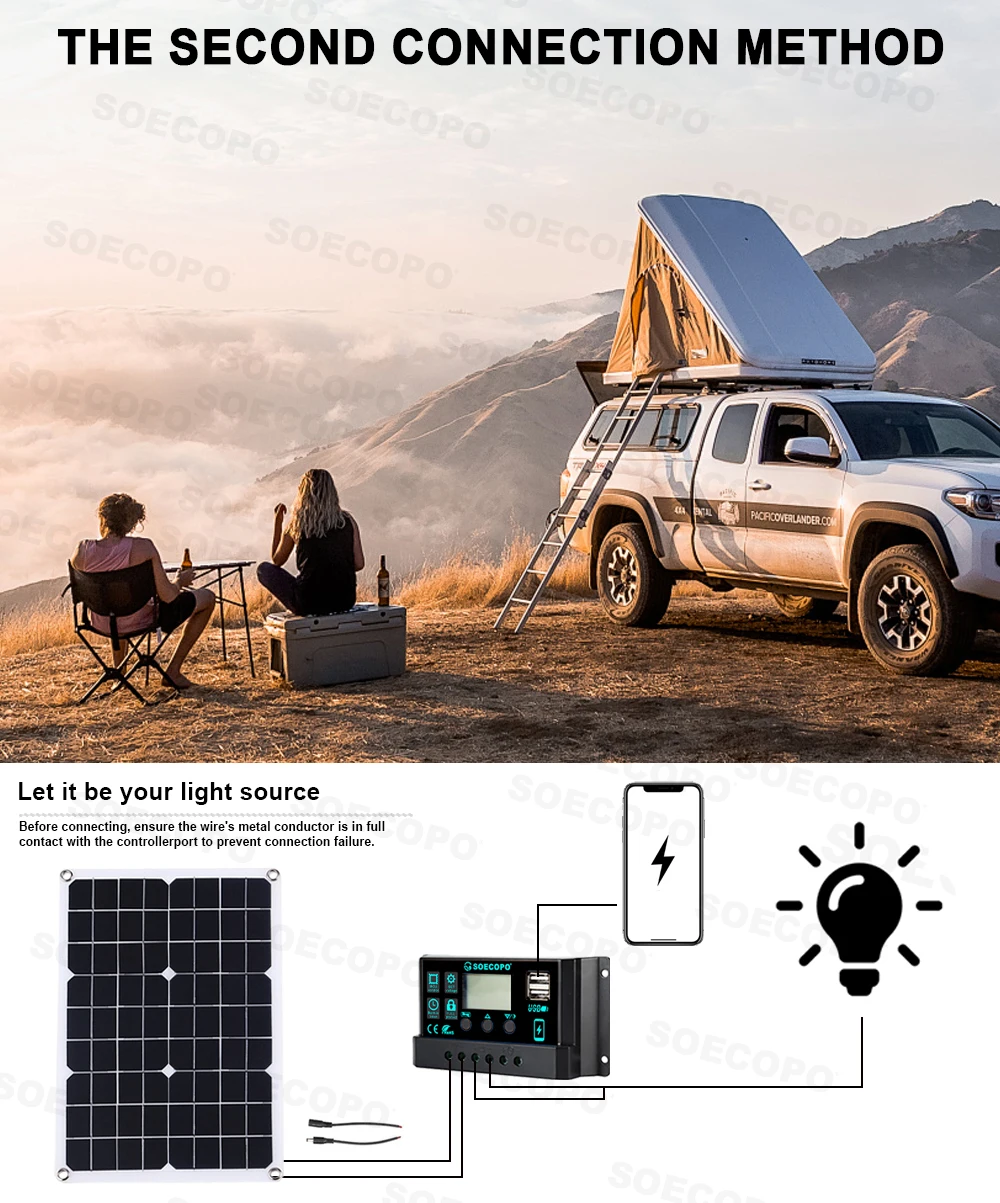

Mode 2: Solar Panel → Controller → Light Bulb

✅Features
▸Controller stabilizes voltage for bulb protection.
▸Supports low-wattage LED bulbs (≤15W).
✅Precautions
▸Connect controller to a Solar Panel first (even for temporary lighting).
▸Match bulb power to controller’s discharge current (≤10A).
✅Scenarios
▸ Nighttime outdoor lighting (tents/backyards)
▸ Emergency lighting during power outages

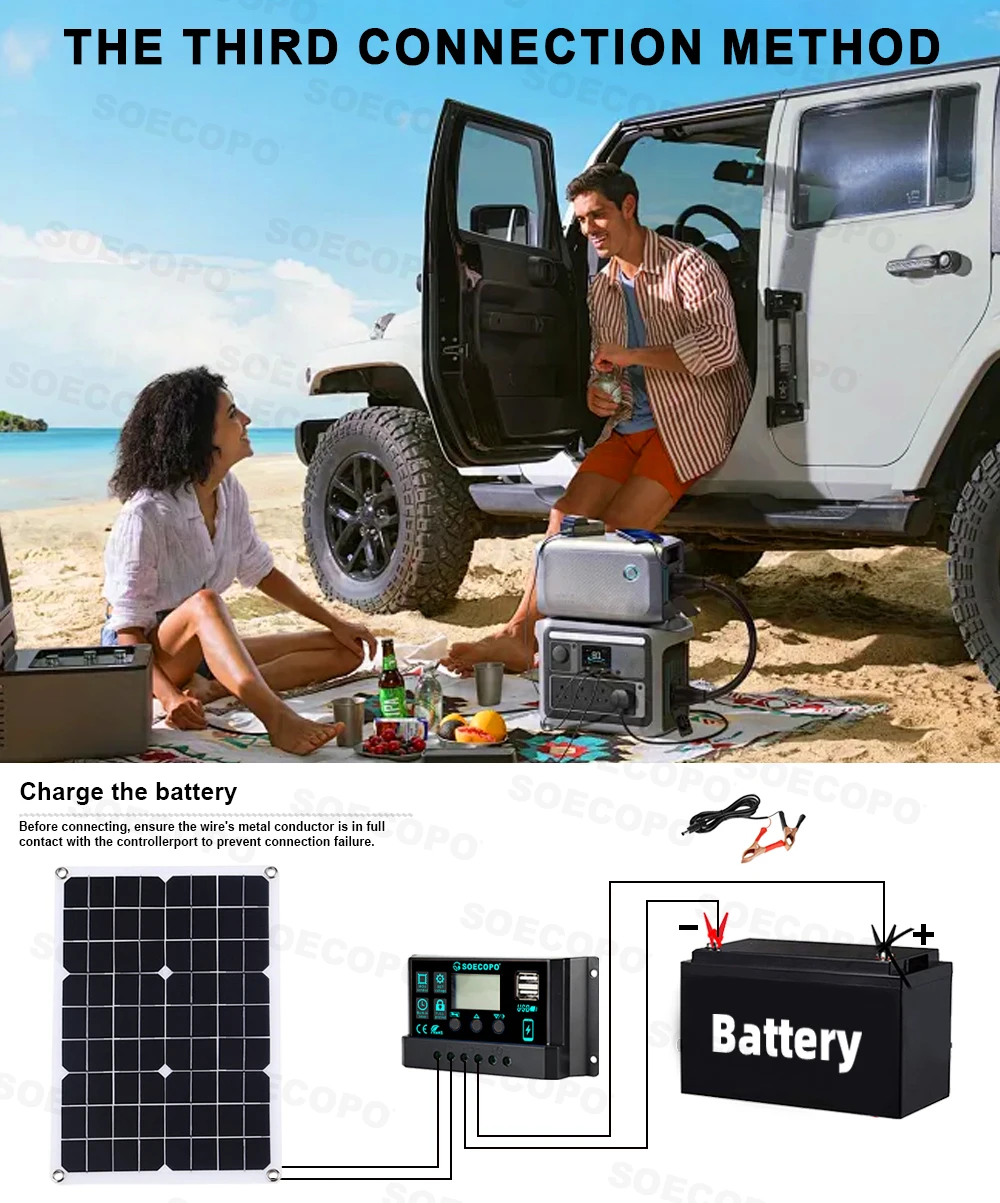

Mode 3: Solar Panel → Controller → Battery

✅Features
▸Efficient energy storage with overcharge/discharge protection.
▸Compatible with lead-acid, lithium, and gel batteries.
✅Precautions
▸Connect battery poles correctly to controller terminals (+/-).
▸Set battery type on controller after initial connection (e.g., b1/b2/b3 modes).
✅Scenarios
▸ Daytime solar storage for nighttime use
▸ Off-grid battery bank setup

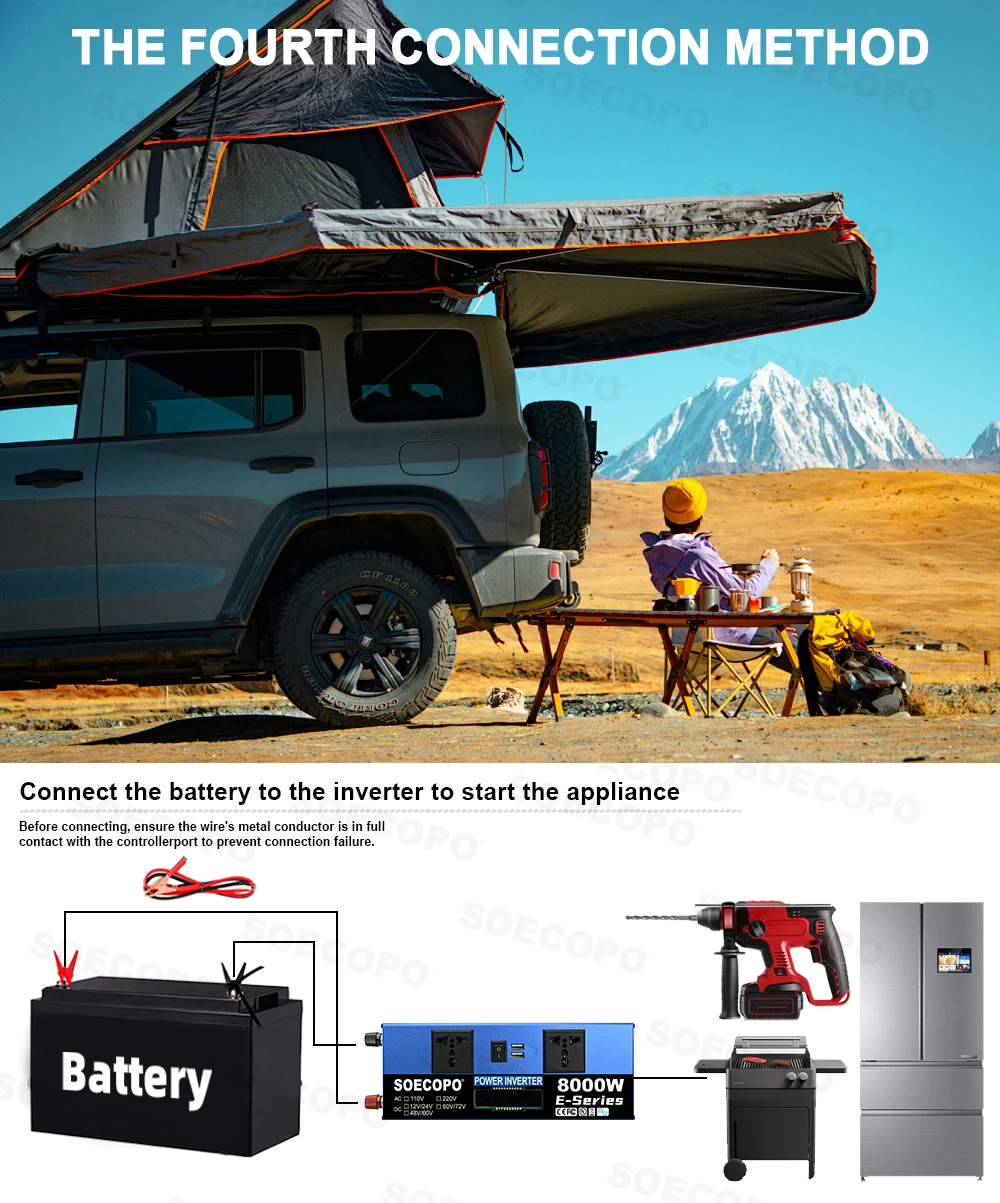

Mode 4: Battery → Inverter → Appliances

✅Features
▸Inverts 12V/24V DC to 110V/220V AC for high-power devices.
▸8000W peak power supports motor-driven tools (e.g., drills, refrigerators).
✅Precautions
▸Inverter input voltage must match battery (12V).
▸Keep continuous load ≤1000W; peak load ≤30 seconds per use.
✅Scenarios
▸ Car appliances (fridges/laptops)
▸ Emergency home devices (fans/medical equipment)

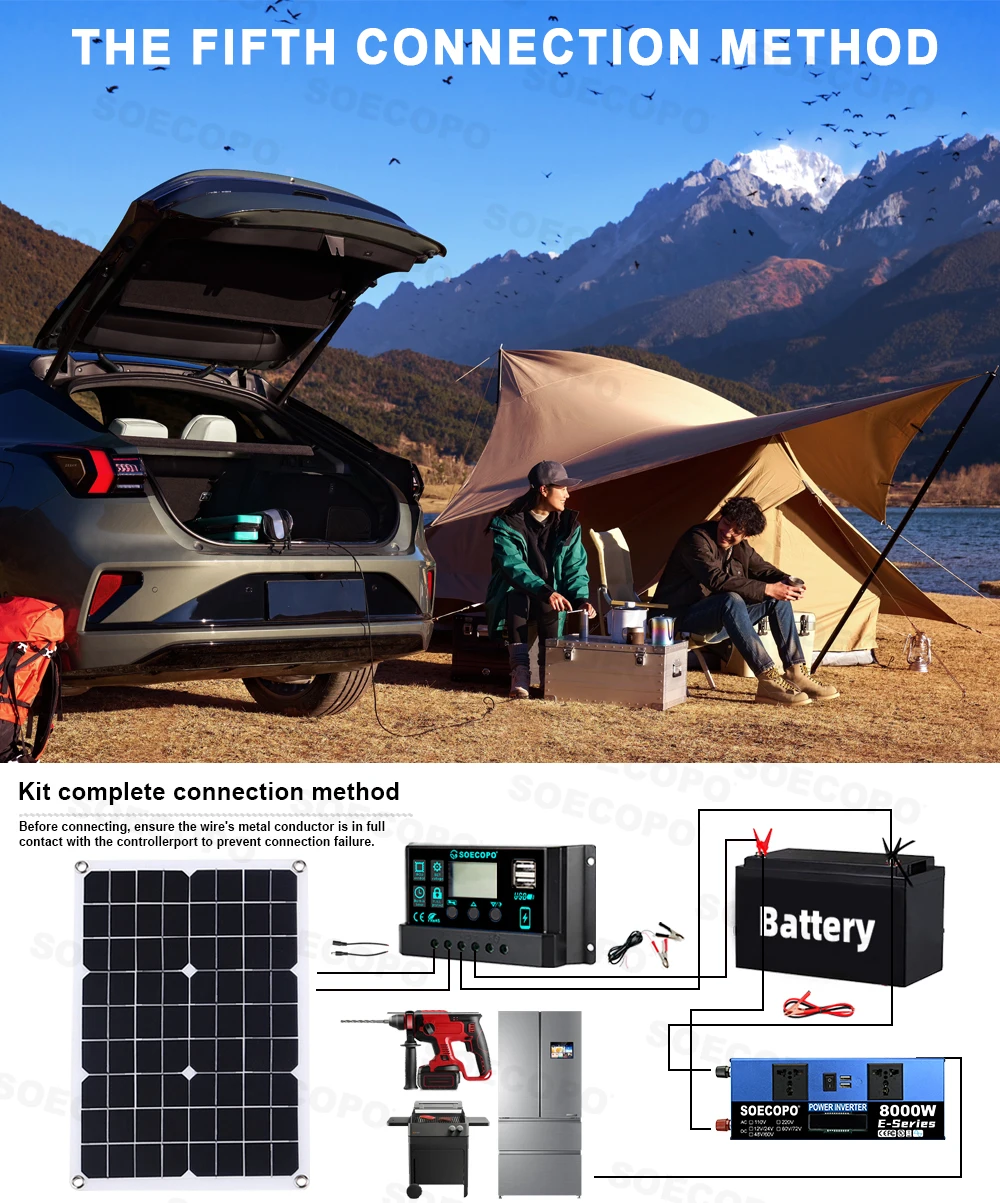

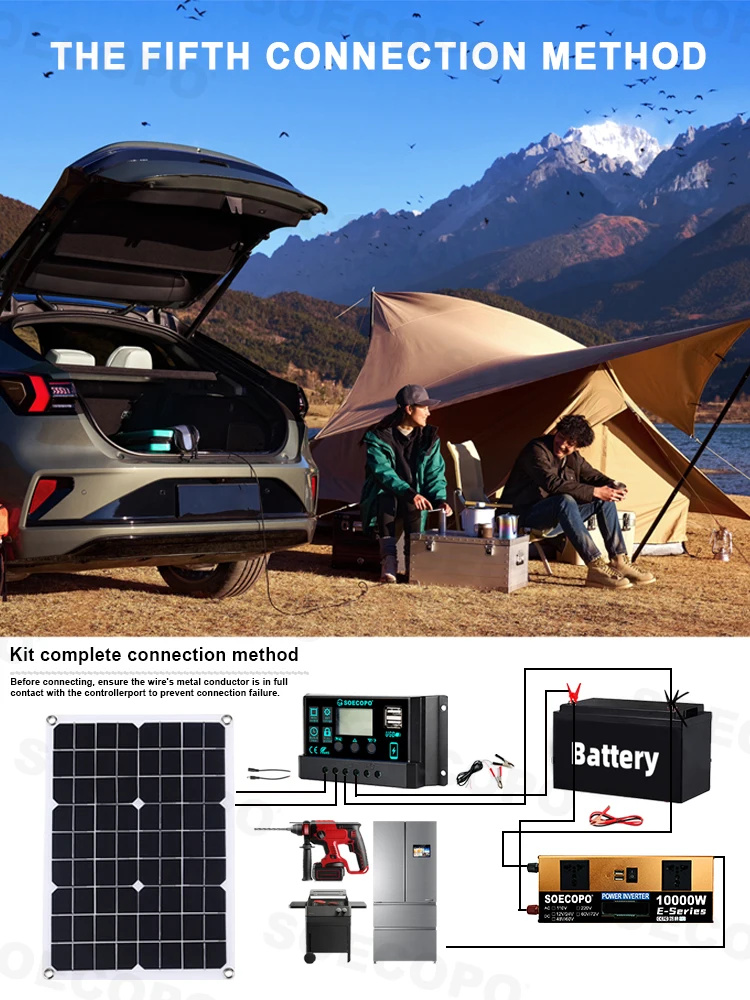

Mode 5: Solar Panel → Controller → Battery → Inverter → Appliances

✅Features
▸Full off-grid power chain: Solar → Battery → Household devices.

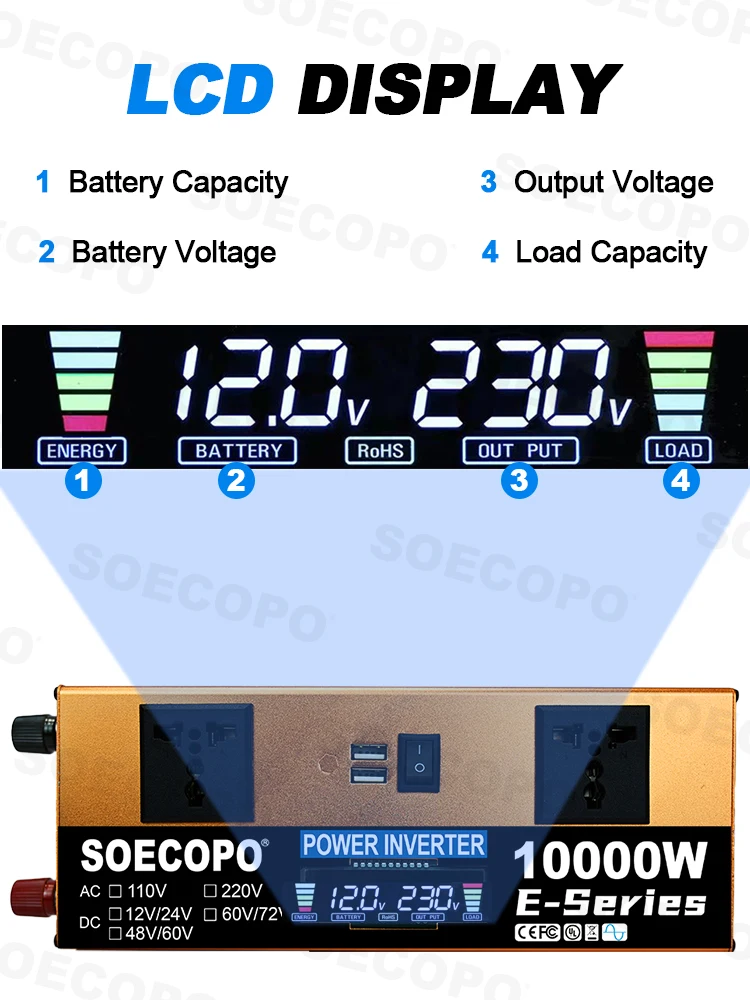

▸Dual protection (controller + inverter) with real-time monitoring.
✅Precautions

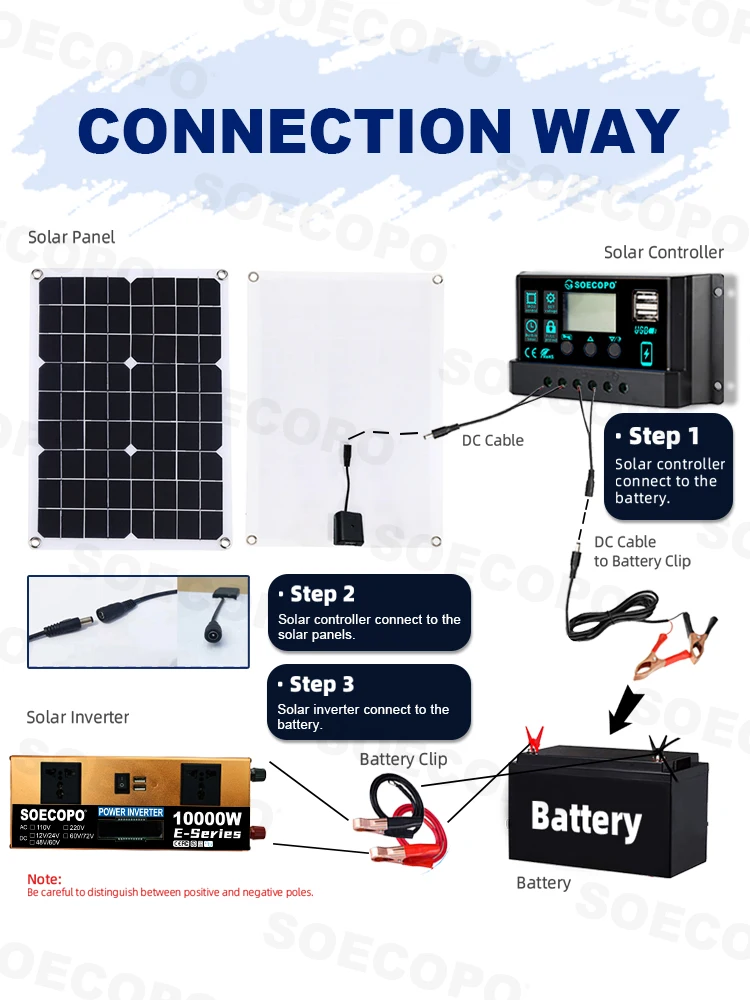

▸Connection sequence: Solar → Controller → Battery → Inverter.
▸Match total power: Solar peak 500W + Inverter continuous 1000W.
✅Scenarios
▸ Home off-grid systems (lights/TV/small appliances)
▸ RV/boat all-day power solutions

Frequently Asked Questions

Q1: How should I select inverter parameters?

A: You need to know the voltage of your battery, the AC voltage in your country, and the appliances you plan to use. What is their power rating? Confirming this information will help determine if the inverter meets your needs.

Q2: What appliances can the inverter/kit power? (Example: inverter with a rated power of 1000W)

A: "Supports common small appliances, but start-up power must be considered!

Safe to use: Laptops (≤150W), electric fans (≤100W), small electric drills (≤800W)

Never use: Air conditioners/electric kettles/hair dryers (start-up power over 2000W will burn out the inverter!)

Conclusion: If appliance power × 2 < 1000W, it's definitely safe!

Q3: Can I connect the inverter directly to the cigarette lighter socket?

A: The inverter comes with a cigarette lighter adapter and battery clamp cables. The cigarette lighter adapter is only suitable for inverters under 200W. For inverters over 200W, use the battery clamps to avoid blowing fuses due to excessive current.

Q4: How long can the inverter run when powering X appliance?

A: Runtime depends on battery capacity and appliance power consumption, not the inverter itself. Example: 500W appliance with 60Ah battery ≈ 1 hour

Q5: Why did my inverter smoke when I plugged in a kettle (1500W)?

A: Heating appliances like kettles typically draw over twice their rated power (3000W) during startup, far exceeding the inverter's capacity. Please photograph the product label and the burned area; we will analyze the cause.

Q6: Why does the inverter display normally when connected to the battery but alarm and show a red light when an appliance is plugged in?

A: The appliance's power exceeds the inverter's rated capacity, triggering its protection mode and cutting power. If the inverter has two outlets and both are used simultaneously, exceeding the total power limit will also cause a shutdown.

Q7: Why does the inverter show no response after connecting to the battery?

A: Verify that the inverter's input voltage matches the battery voltage and that the inverter switch is turned on. Use a DC12V inverter with a 12V battery.
